What are the key specifications of the P4 Outdoor Fixed LED Display?
-
The P4 outdoor fixed LED display features a modular 960 × 960 mm die-casting aluminum cabinet, full-color SMD LED technology, a 3840Hz refresh rate, and a pixel pitch configuration designed for outdoor digital signage. The listed operating temperature range is -20°C to 60°C. Brightness, pixel density, and power consumption should be confirmed against the final project configuration before ordering.
-
-
Is this LED display suitable for long-term outdoor installation?
-
Yes. The display is designed for permanent outdoor installations and features an IP65-rated enclosure for dust and water protection. It is suitable for applications such as outdoor advertising, building facades, and commercial digital signage. Installation planning should also account for structural loading, drainage, ventilation, and local environmental conditions.
-
-
How is the display maintained when installed on a building facade?
-
The display supports front-service maintenance, making it suitable for installations where access to the rear of the screen is restricted. Maintenance access should be considered during the structural design stage to ensure that technicians can safely inspect and replace serviceable components without dismantling the entire display structure.
-
.jpg)
P4 Outdoor Fixed LED Display High-Brightness LED Screen
Designed for permanent outdoor digital signage, this fixed LED display combines a die-casting aluminum cabinet with an IP65-rated enclosure, full-color SMD LED technology, front-service maintenance, and a 3840Hz refresh rate. The configuration is intended for large-format advertising and fixed outdoor video display projects, with a 960 × 960 mm cabinet format and custom pixel pitch options.

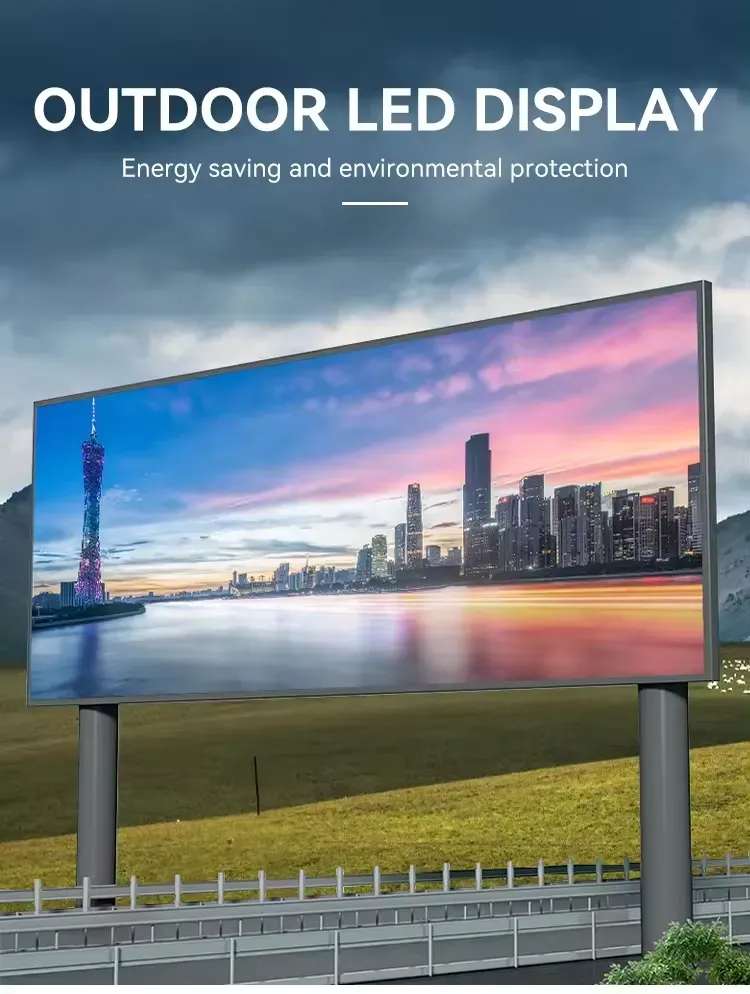

Outdoor Fixed LED Display for Permanent Installations
This display is built around a modular 960 × 960 mm die-casting aluminum cabinet. The aluminum cabinet provides the structural enclosure for the LED modules and electronics, while the IP65 rating specifies the product's stated protection level for outdoor deployment.
The product supports full-color video, images and text, with front-service access for maintenance. This configuration can be considered for fixed advertising displays, building-mounted digital signage and other permanent outdoor LED installations where service access and display performance are project requirements.
Display Performance
The display uses 1R, 1G, 1B SMD LED configuration and supports custom pixel pitch selection. The supplied specification lists a pixel density of 1,137,770 dots/m², a 3840Hz refresh rate, and 5000 brightness. The source does not state the brightness unit, so it is not converted to a specific nit value here.
The system supports:
- Full-color video display
- Image and text display
- Text display
- Market/advertising display
- Video, text, picture and time content
- 3D text and office content
For projects requiring a specific pixel pitch, the source identifies the pixel pitch as custom, allowing the display configuration to be specified according to the required viewing distance and screen resolution.

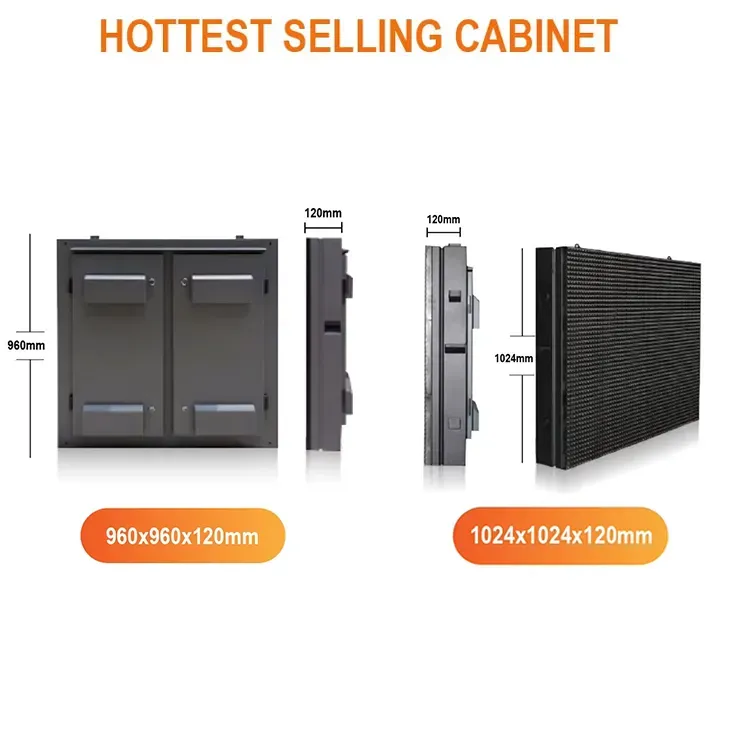

Die-Casting Aluminum Cabinet
The cabinet is specified as die-casting aluminum with a 960 × 960 mm cabinet size. The modular cabinet format provides a defined panel size for designing larger LED walls and fixed advertising screens.
The aluminum cabinet is also described in the supplied product title as an anti-corrosion aluminum cabinet. The available product information does not provide a specific corrosion test standard or test result, so no additional corrosion-performance rating is claimed here.
IP65 Outdoor Protection
The product is specified with an IP65 rating. This makes the enclosure specification directly relevant to outdoor fixed-display projects where protection against dust and water exposure is part of the equipment selection criteria.
The listed operating temperature range is -20°C to 60°C, providing a defined environmental range for project planning. Actual installation should still consider the site's climate, mounting structure, ventilation and electrical conditions.

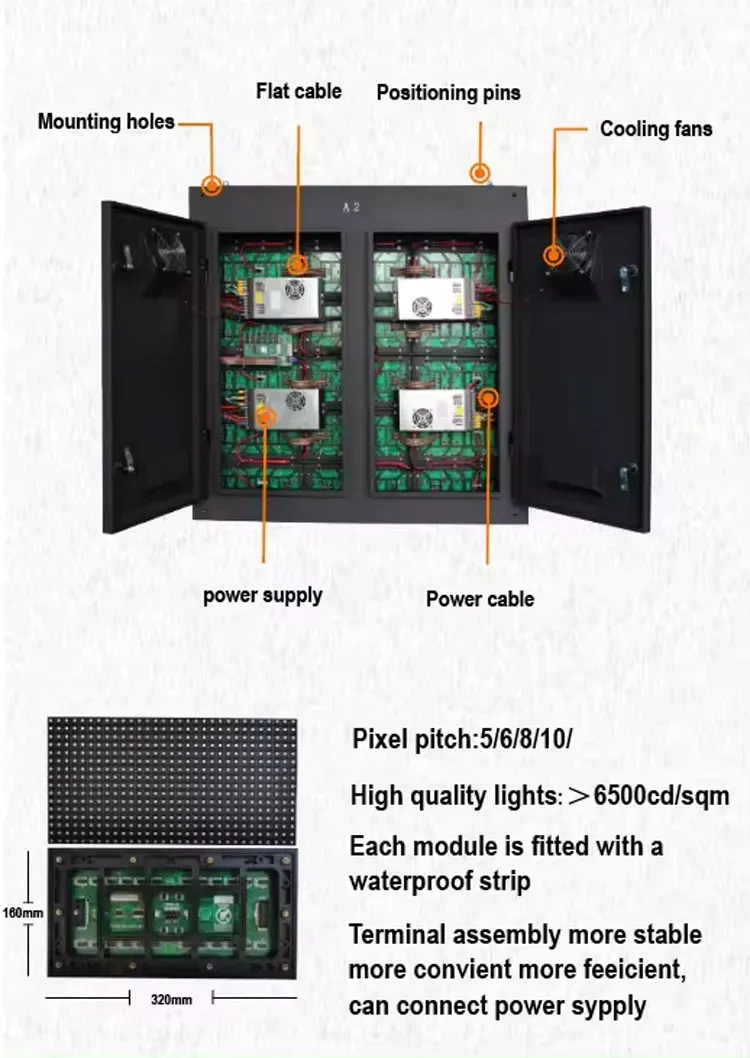

Front-Service Maintenance
The display is specified for front-service maintenance. This configuration is relevant when the LED wall is installed against a building facade or in an arrangement where rear access is restricted.
For fixed installations, front access can be considered during maintenance planning because service work can be performed from the display-facing side rather than requiring unrestricted access behind the cabinet.
Power Configuration
The listed average power consumption is 350 W/m², while another product specification gives power consumption as less than 500 W/m². These values should be confirmed against the final configuration and operating conditions when calculating project power requirements.
Application
The product is positioned for outdoor advertising and fixed LED video display applications. The source also lists science and technology museums, schools and exhibitions among product-use fields, while separately referencing high-end video conference rooms and stadiums. These applications should be evaluated against the final display configuration and project requirements rather than treated as universal installation recommendations.
For OEM projects, the supplied material states that customization is available and the product is associated with the CnHopestar and OEM trademark options.
-

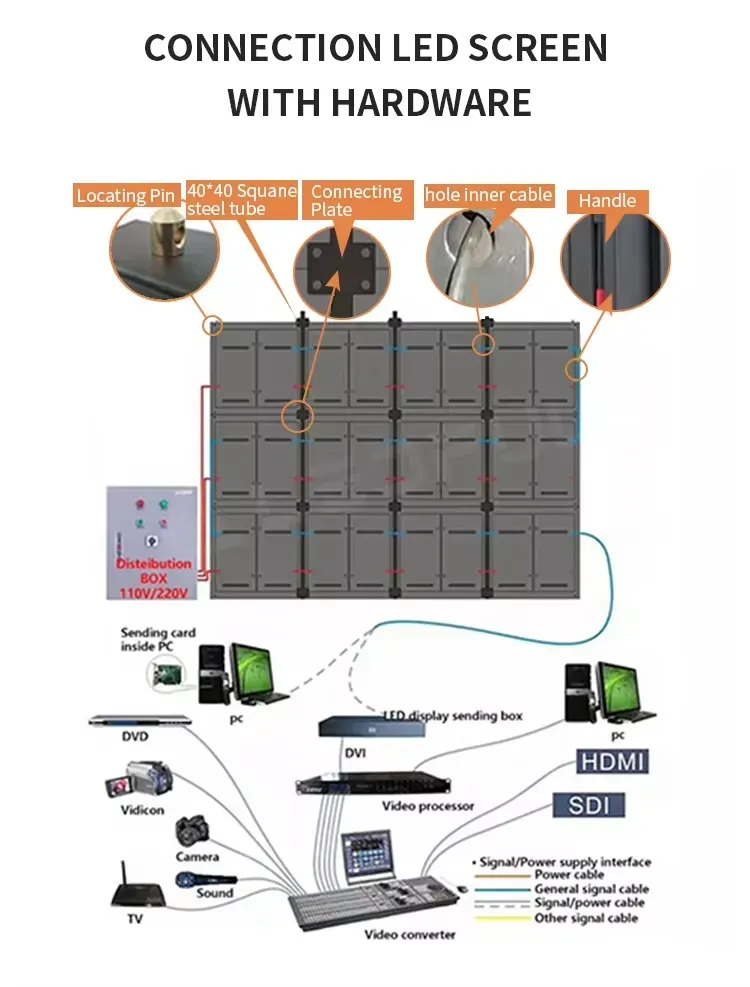

What power supply and system configuration are required?
-
The display's listed average power consumption is 350 W/m², although another specification gives a consumption value below 500 W/m². Final power requirements should therefore be confirmed for the selected configuration. Buyers should provide the screen dimensions, operating schedule, installation environment, and control-system requirements so the supplier can help determine the appropriate power distribution and system configuration.
-
-
Can the display be customized for OEM projects and specific installation requirements?
-
Yes. OEM/ODM customization is available for project-specific requirements. Buyers can discuss screen dimensions, pixel pitch, branding, and configuration requirements with the supplier. Compatibility with the intended control system and any project-specific technical requirements should be confirmed before production.
-
-
What are the minimum order quantity, lead time, and after-sales support options?
-
The supplier accepts wholesale orders and indicates that single-unit purchases may also be possible. Production lead time depends on order quantity and the final configuration, so buyers should request a confirmed delivery schedule before placing an order. For project procurement, it is also advisable to confirm warranty coverage, spare-parts availability, installation guidance, technical support, and applicable payment and shipping terms in the quotation.
-
