Introduction of Led Dance Floor Screen

Because of the characteristics of various colors, stable performance and long service cycle, the LED floor tile screen decorates every place of people's living environment, making the city more colorful in the night environment, adding a lot of interest, and improving people's enjoyment of life. Level.

Advantages of floor led screen

1. Load capacity up to 5 tons

2. IP65 water proof

3. Interactive chip built in

4. Quiet cooling

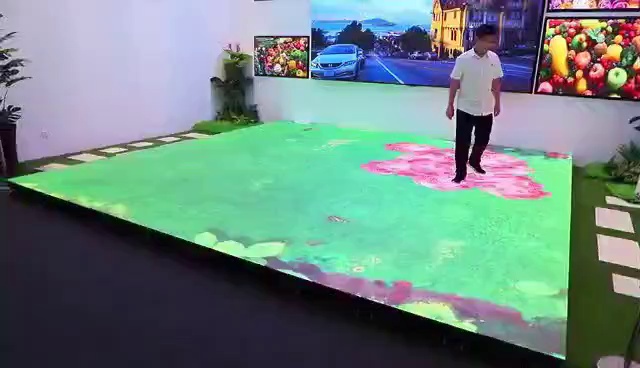

The floor led screen is a device displayed on the ground. It adopts a video synchronization control method to achieve high-resolution soft color effects, and the light source uses a super bright semiconductor light-emitting diode (LED display). On the original LED display It adopts a high-strength mask, coupled with a strong aluminum alloy bracket, so that it can be stepped on at will.

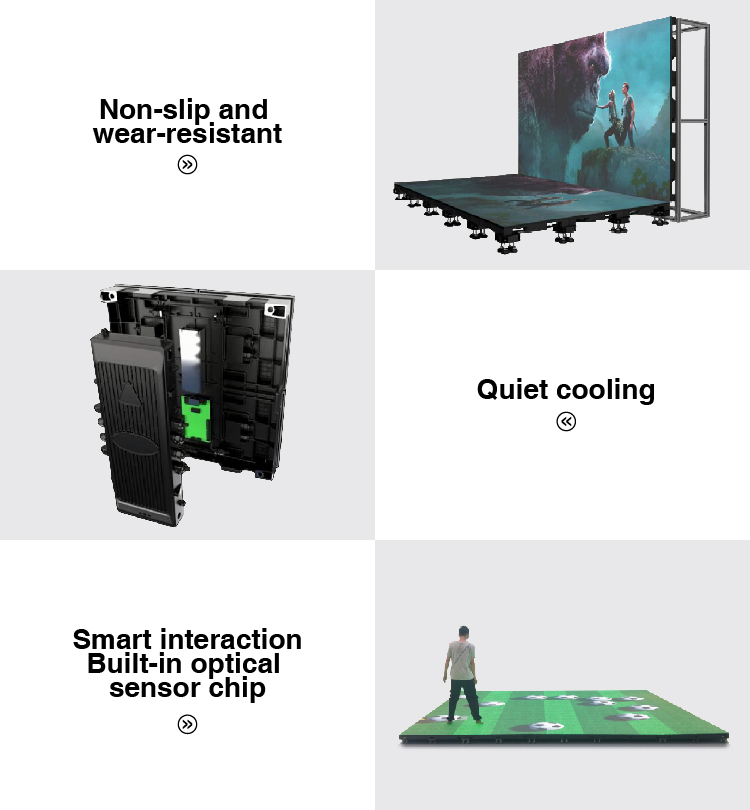

Features of Led Dance Floor Screen

High stability, good load-bearing, wear-resistant and slippery, waterproof, moisture-proof, easy maintenance, good heat dissipation, high brightness, gorgeous colors, realistic effects.

Indoor  Models   P2.97 / P3.91 / P5.2
Outdoor Models   P6.25 / P7.8 / P8.9

Model	P2.97	P3.91	P5.2
LED Type	SMD1415	SMD1921	SMD1921
Pixel density(dots/m²)	112,896	65,536	36,864
Module Size(mm)	250x250	250x250	250x250
Module Pixels(dots)	84x84	64x64	48x48
Cabinet Size(mm)	500x500 / 500x1000
Weight/cabinet(kg)	10.5kgs die-casting aluminum /  22kgs steel
Brightness(cd/m²)	1500-1800	1500-1800	1500-1800
Power Max./Avg.(W/㎡ )	800/400	800/400	800/400
Scan Mode	1/14	1/16	1/6
Refresh Rate (Hz)	1920-3840
Working Humidity (RH)	10%-90% RH
Working Temperature(℃)	-20 ℃~+65 ℃
IP grade(front & back)	front IP65, back IP32
Cleaning Method	Non-slip, moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage, and under-voltage protection
Cabinet Material	Die-cast aluminum / steel cabinet

Model	P6.25	P7.8	P8.9
LED Type	SMD2727	SMD2727	SMD3535
Pixel density(dots/m²)	25,600	16,384	12,544
Module Size(mm)	250x250	250x250	250x250
Module Pixels(dots)	40x40	32x32	28x28
Cabinet Size(mm)	500x500 / 500x1000
Weight/cabinet(kg)	13.5kgs / 26.9kgs
Brightness(cd/m²)	Indoor 1800/ outdoor 4500
Power Max./Avg.(W/㎡ )	1200/600	1200/600	1200/600
Scan Mode	1/10	1/4	1/4
Refresh Rate (Hz)	1920-3840
Working Humidity (RH)	10%-90% RH
Working Temperature (℃)	-20 ℃~+65 ℃
IP grade(front & back)	front IP45, back IP67
Cleaning Method	Non-slip, moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage, and under-voltage protection
Cabinet Material	steel

Step into a new era of exhibitions and retail with our indoor LED floor display. Imagine visitors walking over a vibrant, high-definition surface that not only captures attention but transforms your space into a memorable experience. Perfect for trade shows, retail environments, and live events, this display brings content to life exactly where your audience interacts.



Our production process is built around precision and reliability. Each module is carefully crafted in our certified factory, following strict quality controls that ensure consistency and durability. From initial assembly to final inspection, we maintain high standards to deliver a display that meets the expectations of professional B2B applications.

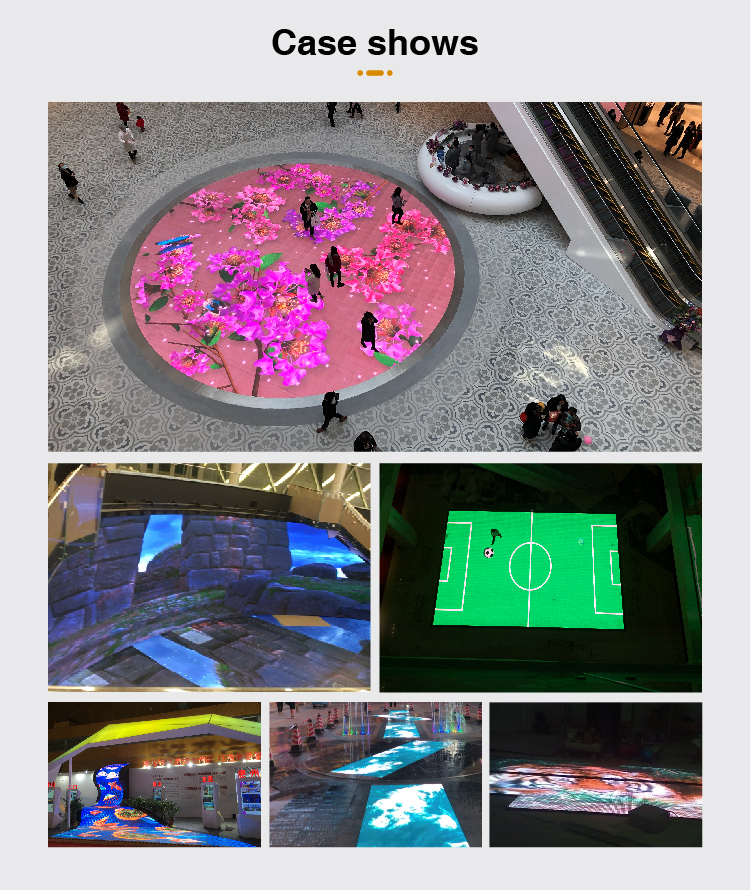

Who needs this? Retail chains wanting a show-stopping store environment, event organizers looking to create immersive experiences, and exhibition designers aiming for interactive, eye-catching floors. Our clients, from luxury malls in Europe to major event venues in the US, have seen increased engagement and visitor satisfaction after installing our LED floors.

We also offer fully customizable solutions. Size, brightness, pixel pitch, and even content integration can be tailored to your specific project needs. Every display is backed by industry certifications, giving you confidence in both safety and performance.

Bring innovation to your floor and create spaces where every step tells a story. With Hopestar, your displays are more than just screens—they’re immersive experiences designed to engage, captivate, and convert.
