Outdoor Led Display

Outdoor Led Display

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
250X250MM SERIES

250X250MM SERIES »

Models P2.97 / P3.91

PARAMETERS »


Model

P2.97

P3.91

Pixel Pitch(mm)

2.97

3.91

Pixel Composition

1R1G1B

1R1G1B

LED Type

SMD

SMD

Pixel density(dots/m²)

112,896

65,536

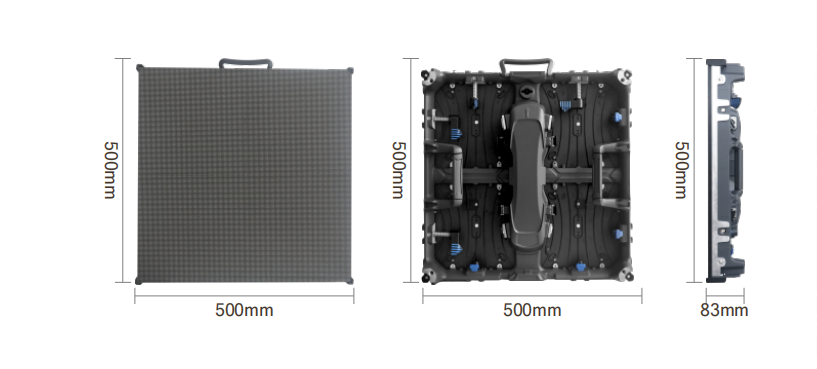

Cabinet Size(mm)

500x500

500x500

Cabinet Resolution(dots)

168x168

128x128

Module Size(mm)

250x250

250x250

Module Resolution(dots)

84x84

64x64

Cabinet Material

Die-casting Aluminum

Cabinet Weight(kg)

8.5

8.5

Brightness(cd/m²)

5,000

5,000

Power Max./Avg.(W/㎡ )

1000/450

875/300

Refresh Rate (Hz)

1920-3840

Gray Scale(bit)

12-16

Input Voltage

AC100~240V/50~60Hz

Working Temperature(℃)

-30℃~60℃

Installation/Maintenance

Front / Rear

Life Span

100,000 hours

Mtbf

>10,000 hours

Certification

CE ETL FCC RoHS

PRODUCT FEATURES »

Outdoor LED Display – Built for Impact, Engineered for Reliability

When you’re looking for a display solution that can truly cut through the noise, an outdoor LED display isn’t just about brightness—it’s about delivering your message in any condition, without compromise. Hopestar’s outdoor LED display is designed for businesses, integrators, and distributors who need more than a screen. You need a reliable, long-term solution that works just as well under the summer sun as it does on a rainy night.

Designed for Real-World Applications

From stadiums and transportation hubs to retail plazas and corporate campuses, our outdoor LED displays create clear, engaging communication in any environment. Retailers use them to attract customers with dynamic promotions. Municipalities rely on them for wayfinding and public announcements. Event organizers choose them for concerts and sports venues because the content stays sharp even at a distance.

What Sets Hopestar Apart

While many brands focus on technical jargon, our advantage lies in combining performance with practicality. Every Hopestar outdoor LED display is built with weather-resistant engineering, long lifespan components, and energy efficiency in mind—making it a cost-effective choice over time. Installation and maintenance are straightforward, helping integrators and distributors reduce deployment complexity.

Who Needs This

Distributors who serve retail and hospitality chains
Integrators building digital signage networks for transportation, stadiums, or municipalities
Event solution providers needing large-scale, high-visibility displays
Brands seeking consistent outdoor communication with low downtime and reliable service support

Customer Cases

A retail group in Southeast Asia upgraded 40+ store exteriors with Hopestar outdoor LED displays, reporting a measurable boost in walk-in traffic within three months.
A European transportation authority deployed our displays in a central station, citing excellent visibility and easy integration with their real-time information system.

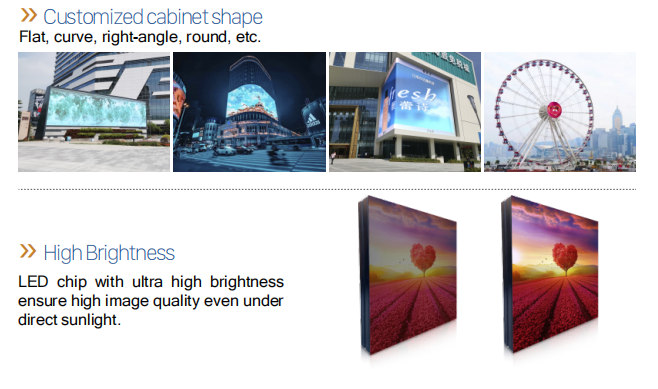

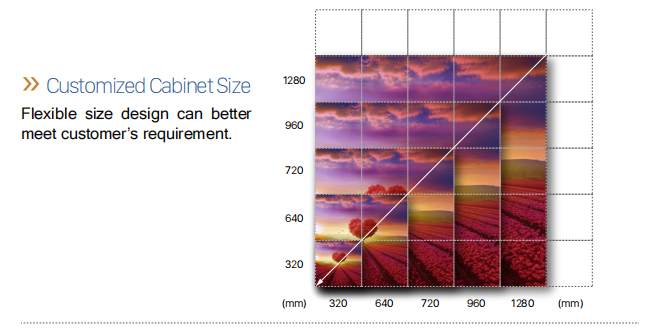

Customization to Match Your Business

We understand that not every project is the same. That’s why Hopestar offers full customization—pixel pitch options, cabinet sizes, brightness levels, and even tailored integration for existing control systems. Whether you’re rolling out a nationwide retail network or fitting a one-time event, we provide flexibility without sacrificing reliability.

Certifications and Quality Assurance

Each unit undergoes rigorous testing and comes with CE, FCC, and RoHS certifications, so you can be confident in compliance and long-term durability. We build for real-world use, ensuring our partners deliver results to their end customers without added risk.

Why Choose Hopestar Over Others

Compared to well-known competitors like Unilumin or ROE Visual, Hopestar focuses on a balance of affordability and premium build quality. Our clients often highlight our faster deployment support, flexible customization, and better service accessibility as the key reasons they return to us.

320X320MM SERIES

320X320MM SERIES »

Models P6.67 / P8/P10

Outdoor LED Display – Flexible, Durable, and Built for Demanding Projects

When you’re planning an outdoor LED installation, flexibility and reliability make all the difference. Hopestar’s outdoor LED series, available in P6.67, P8, and P10 models, is designed to give system integrators and end users a versatile platform that adapts to real project needs without compromise.

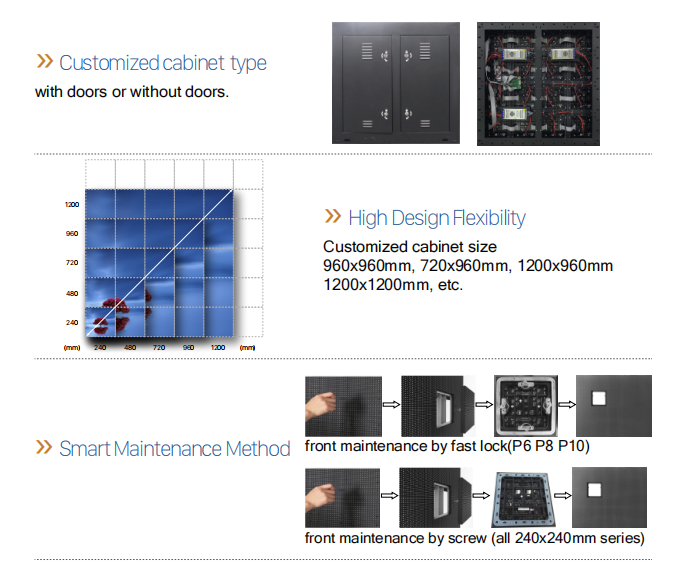

Flexible Cabinet Design for Any Project

Every site is unique, and our customized cabinet sizes ensure a seamless fit no matter the environment. Whether it’s a large-format billboard, a stadium perimeter, or a high-traffic public square, the modular design lets you scale and shape your display exactly the way your project demands.

PARAMETERS »


Model

P6.67

P8

P10

Pixel Pitch(mm)

6.67

8

10

Pixel Composition

1R1G1B

1R1G1B

1R1G1B

LED Type

SMD2727

SMD2727

SMD2727

Pixel density(dots/m²)

22,477

15,625

10,000

Cabinet Size(mm)

960x960

960x960

960x960

Cabinet Resolution(dots)

144x144

120x120

96x96

Module Size(mm)

320x320

320x320

320x320

Module Resolution(dots)

48x48

40x40

32x32

Cabinet Material

Iron / Aluminum

Cabinet Weight(kg)

32.5KG(Iron)

Brightness(cd/m²)

6,0000

Power Max./Avg.(W/㎡ )

800/300

800/300

800/300

Refresh Rate (Hz)

1920-3840

Gray Scale(bit)

12-16

Input Voltage

AC100~240V/50~60Hz

Working Temperature (℃)

-30℃~60℃

Installation/Maintenance

Front / Rear

Life Span

100,000 hours

Mtbf

>10,000 hours

Certification

CE ETL FCC RoHS

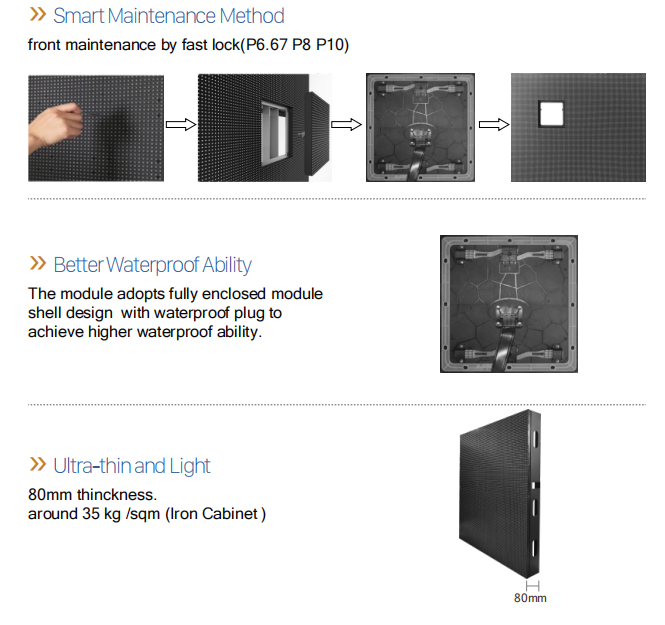

Superior Waterproof Protection

Outdoor signage needs to withstand unpredictable weather. Our fully enclosed module shell design, combined with waterproof connectors, delivers enhanced IP-rated protection. From heavy rain to dust exposure, the display remains secure and stable—reducing downtime and protecting your investment.

PRODUCT FEATURES »

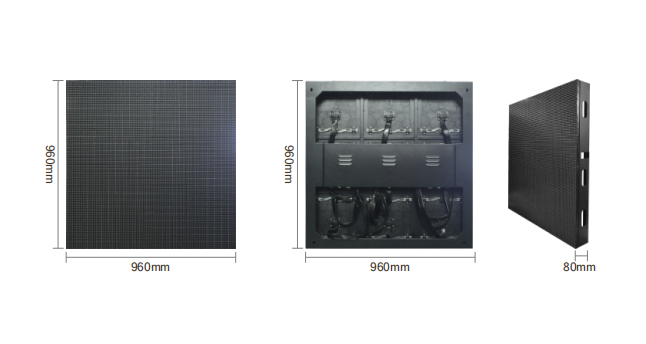

Ultra-Thin, Lightweight Structure

At only 80mm in thickness and around 35kg per square meter (iron cabinet), the display is engineered to be slim yet robust. This lightweight build makes installation easier, reduces structural load, and allows for cleaner, more modern integration into building facades or freestanding structures.

Built for Long-Term Operation

Hopestar outdoor LED displays are not just about technical specs—they are about lasting performance. Each unit goes through rigorous durability testing to ensure stability in 24/7 operation. Low power consumption and efficient heat management extend the lifespan, keeping your total cost of ownership under control.

Why It Matters for Your Business

For distributors, this means faster deployments and fewer service calls. For integrators, it means simpler project planning and confidence in installation stability. For end users, it translates into sharper visuals, higher uptime, and peace of mind that the screen will perform year after year.

240X240MM SERIES

240X240MM SERIES »



PRODUCT PARAMETERS »

240x240mm Series

Model

P6

P8

P10

P10

P12

P15

P16

Pixel Pitch(mm)

6

8

10

10

12

15

16

Pixel Composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

LED Type

SMD2727

SMD3535

SMD3535

DIP 346

DIP 346

DIP 346

DIP 346

Pixel Density(dots/m²)

27,777

15,625

10,000

10,000

6,944

4,444

3,906

Cabinet Size(mm)

960x960

960x960

960x960

960x960

960x960

960x960

960x960

Cabinet Resolution(dots)

160X160

120x120

96x96

96x96

80x80

64x64

60x60

Module Size(mm)

240X240

240X240

240X240

240X240

240X240

240X240

240X240

Module Resolution(dots)

40x40

30x30

24x24

24x24

20x20

16x16

15x15

Cabinet Material

Iron / Aluminum

Cabinet Weight(kg)

around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum)

Brightness(cd/c)

6,000

6,000

6,000

7,500

7,500

7,500

7,500

Power Max./Avg.(W/m²)

800/300

750/300

780/300

550/200

550/200

550/200

550/200

Refresh Rate(Hz)

1920~3840

Gray Scale(bit)

12 ~ 16

Input Voltage

AC100~240V/50~60Hz

Working Temperature

-30℃~60℃

Installation/Maintenance

Front/ rear

Life Span

100,000 hours

Mtbf

>10,000 hours

Certification

CE ETL FCC RoHS



Conventional Size Series

Model

P3

P4

P5

P6

P8

P10

Pixel Pitch(mm)

3

4

5

6

8

10

Pixel Composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

LED Type

SMD1415

SMD1921

SMD1921

SMD3535

SMD3535

SMD3535

Pixel Density(dots/m²)

111,111

62,500

40,000

27,777

15,625

10,000

Cabinet Size(mm)

960x960

960x960

960x960

960x960

960x960

960x960

Cabinet Resolution(dots)

320x320

256x256

192x192

160x160

128x128

96x96

Module Size(mm)

192x192

256x128

320x160

192x192

256x128

320x160

Module Resolution(dots)

64x64

64x32

64x32

32x32

32x16

32x16

Cabinet Material

Iron / Aluminum

Cabinet Weight(kg)

around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum)

Brightness(cd/c)

5,000

5,500

6,000

6,000

6,000

6,000

Power Max./Avg.(W/m²)

1100/300

800/300

850/300

850/300

800/300

800/300

Refresh Rate(Hz)

1920~3840

Gray Scale(bit)

12 ~ 16

Input Voltage

AC100~240V/50~60Hz

Working Temperature

-30℃~60℃

Installation/Maintenance

Rear

Life Span

100,000 hours

Mtbf

>10,000 hours

Certification

CE ETL FCC RoHS
