3.91mm 500×500mm Rental LED Display for Stage and Event Applications

This 500×500mm rental LED display is designed for temporary and repeated-use installations where a large-format video wall needs to be assembled, operated, dismantled and transported between events. The product is positioned for stage backgrounds, concerts, live events, advertising displays and other indoor or outdoor applications where installation flexibility is important.

The standard configuration is based on a 500×500mm cabinet with a custom pixel pitch range that includes P2.6, P2.9, P3.91 and P4.81 options.

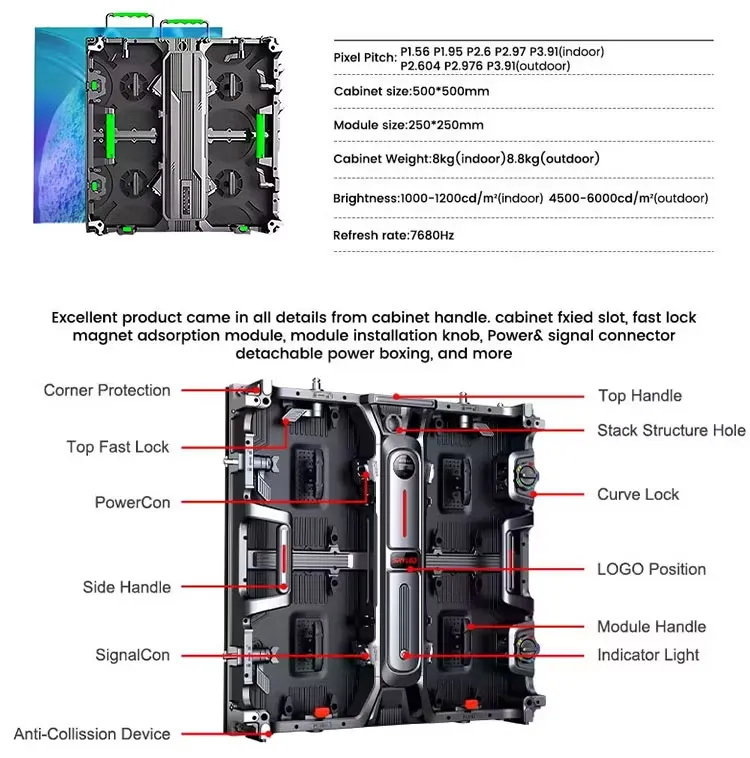

500×500mm Cabinet for Modular Rental Systems

The 500×500mm cabinet format provides a practical building block for rental LED walls. Cabinets can be combined into different screen dimensions according to the stage, event venue or advertising installation.

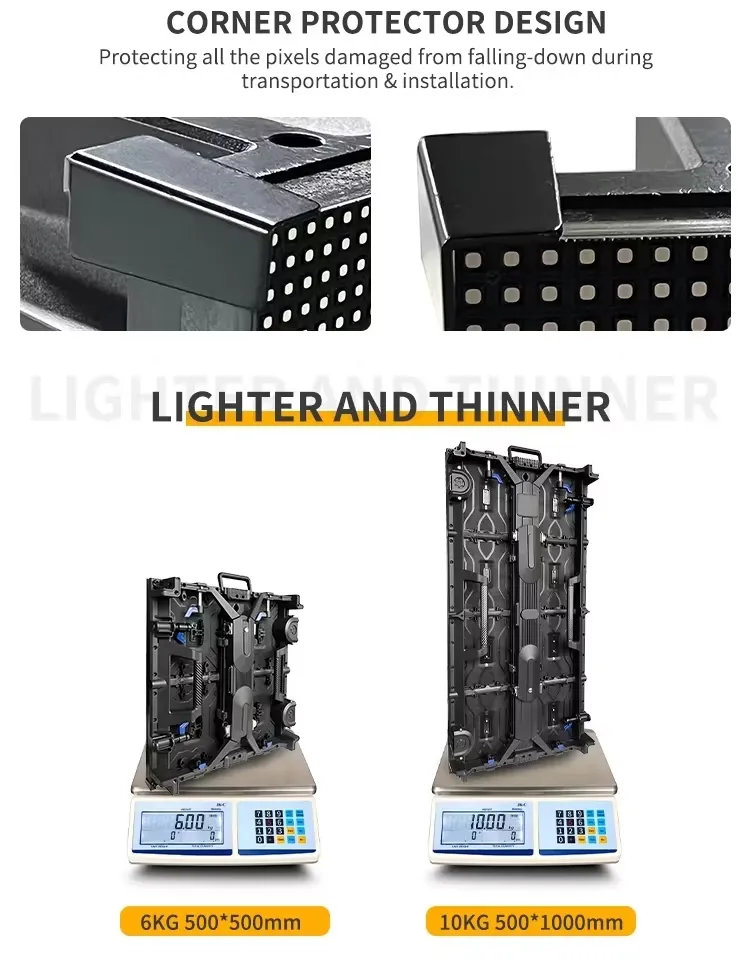

For rental operators, cabinet format is an important consideration because the display may be installed in different locations rather than remaining permanently mounted. The compact cabinet specification also supports transportation and repeated setup work, while the supplied transport options include cartons, wooden cases and flight cases.

The cabinet uses die-cast aluminum construction. This material is specified together with the rental-oriented design and provides a rigid cabinet structure for modular LED display assembly.

P3.91 and Multiple Pixel-Pitch Options

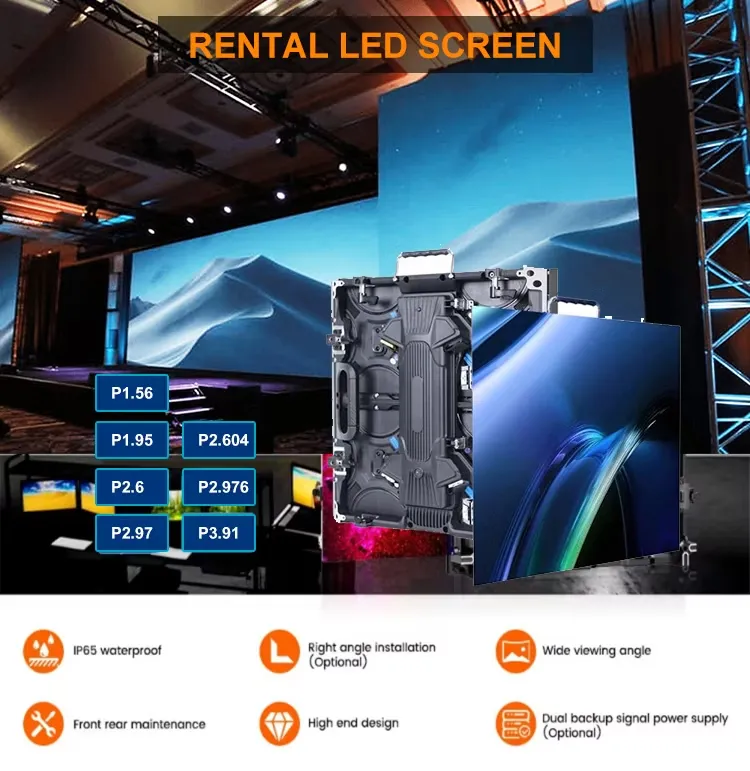

The featured product is presented as a 3.91mm LED display, while the supplied product information also lists P2.6, P2.9 and P4.81 configurations.

Pixel pitch should be selected according to the relationship between screen size and audience viewing distance. For stage applications where the audience may be relatively close to the screen, a finer pitch can be considered. For larger screens viewed from greater distances, a wider pixel pitch may provide a more practical configuration.

For project orders, the final pixel pitch should therefore be confirmed together with the required cabinet quantity, screen dimensions and viewing environment.

3840Hz Refresh Rate for Video and Event Production

The display is specified with a 3840Hz refresh rate. For rental LED systems used in concerts, stage productions and events, refresh rate is particularly relevant when the screen is recorded by professional cameras.

A high refresh rate helps reduce visible scanning artifacts during camera capture and is therefore useful for applications involving live broadcasting, event photography, stage recording and video production. It also supports the display of video, images and text content through the LED control system.

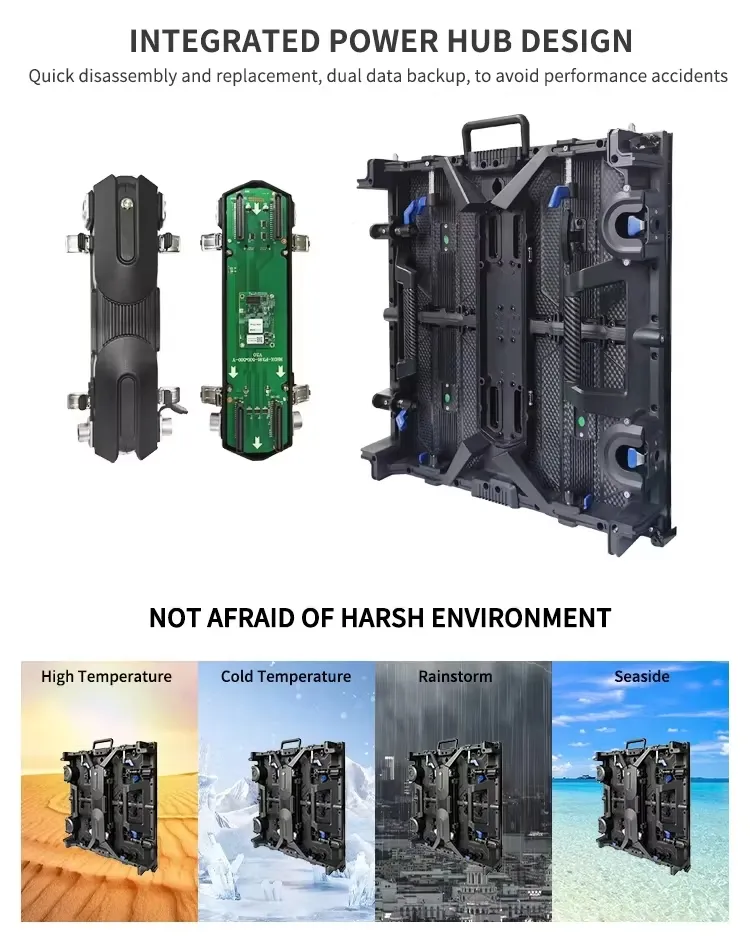

Outdoor-Capable Configuration for Flexible Event Deployment

The product is presented for both indoor and outdoor use, making it suitable for event companies and rental operators that need one LED display platform for different deployment environments.

The supplied product information includes an IP-rated enclosure, with IP68 stated in the detailed product attributes while the product title refers to IP65. Because the IP specification varies between the title and detailed attributes, the final protection rating should be confirmed against the exact configuration before project procurement.

For outdoor deployment, the final installation should also consider mounting structure, power distribution, cable routing, weather exposure and local site requirements rather than relying on the display enclosure rating alone.

Brightness for Stage and Advertising Applications

The listed brightness range is 800–1200 cd/m². This provides a configuration range for applications where screen visibility needs to be considered alongside ambient lighting conditions.

For indoor stages, conferences and controlled event environments, brightness can be selected according to the venue lighting and camera requirements. Outdoor applications require additional consideration of sunlight, viewing direction and installation position.

This makes brightness selection part of the overall project configuration rather than an isolated specification.

Designed for Repeated Installation and Rental Operations

Unlike a permanent fixed LED wall, a rental display is expected to move between venues and projects. Cabinet handling, transportation, assembly and disassembly therefore become part of the procurement decision.

The 500×500mm cabinet format and die-cast aluminum construction are suited to this type of modular deployment. Transport can be configured using cartons, wooden cases or flight cases according to project requirements.

For rental companies, the same cabinet platform can be configured into different screen sizes for concerts, stage shows, exhibitions, corporate events, advertising installations and temporary outdoor displays.

Typical Applications

This rental LED display can be configured for:

• Concert and touring stage backgrounds
• Live event and festival video walls
• Indoor and outdoor stage productions
• Corporate events and conferences
• Exhibition and trade-show displays
• Advertising and promotional screens
• Temporary commercial installations
• Event rental and AV production systems

The display supports video, images and text content, making it suitable for applications where the LED wall functions as a visual background, advertising surface or live-content display.

OEM and ODM Configuration

The supplied product information indicates customization availability and OEM/ODM support, including branding options such as silk printing and boot-up logos.

For distributors, rental companies and system integrators, customization can be discussed around the final pixel pitch, cabinet configuration, branding requirements, control system and project quantity. The product information also lists CE, RoHS, CCC and ETL certifications; applicable certification should be confirmed for the final product configuration and destination market.

Before production, project specifications should be confirmed for pixel pitch, cabinet quantity, total screen dimensions, brightness, protection rating, power requirements, control system and transportation method.

For a rental LED project, providing these details at the quotation stage helps establish the appropriate cabinet configuration and deployment package.
