What is your company's main product?
-
Our main product is Rental LED display,Outdoor LED display,Indoor LED display,transparent LED display, Floor tile led display etc.
-
-
What payment methods your company accept?
-
We accept most of the payment methods,but mainly accept T/T, Western Union/Alibaba assurance trade payment.
-
-
what's the shipment terms and delivery time of your company?
-
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
-
Led Curtain Display
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
INTRODUCTION »
Display LED grille screen, the cabinet is thin and light, 65% lighter than the conventional cabinet display. High transparency does not affect the natural lighting and viewing requirements inside the building, and minimizes the impact on the appearance of the building. Fanless design, no noise, high heat dissipation, quick installation and maintenance.
Models P16- 16 / P16-33 / P25-25 / P33-33
PRODUCT PARAMETERS »
|
Model |
P16-16 |
P16-33 |
P25-25 |
P33-33 |
|
Pixel composition |
1R1G1B |
1R1G1B |
1R1G1B |
2R2G2B |
|
LED type |
DIP346 |
DIP346 |
DIP346 |
DIP346 |
|
Pixel density(dots/m²) |
3600 |
1800 |
1600 |
900 |
|
Brightness (cd/m²) |
≥8000 |
≥7000 |
≥7000 |
≥7000 |
|
Power Max./Avg.(W/m²) |
560/200 |
530/185 |
530/185 |
530/185 |
|
Transparency rate (%) |
45 |
70 |
65 |
68 |
|
Minimum view distance(m) |
16 |
25 |
25 |
33 |
|
LED cabinet size (mm) |
500×1000 |
500×1000 |
500×1000/ 500×1500 |
500×1000 |
|
LED cabinet weight (kg/pc) |
7.5 |
7 |
7/9.5 |
7 |
|
Fixing structure weight (kg/m²) |
5 |
|||
|
Refresh rate (Hz) |
1920-3840 |
|||
|
Working temperature (℃) |
-20 ~ +60 |
|||
|
Working humidity (RH) |
10~90 |
|||
|
Ingress protection(front & back) |
IP65 |
|||
|
Ventilation and heat dissipation |
Natural ventilation |
|||
|
Cleaning method |
High-pressure water jet |
|||
|
Shell material |
Aluminium alloy |
|||
|
Control system |
Integration |
|||
|
Maintenance mode |
Front |
|||
|
Life time (hrs) |
100,000 |
|||

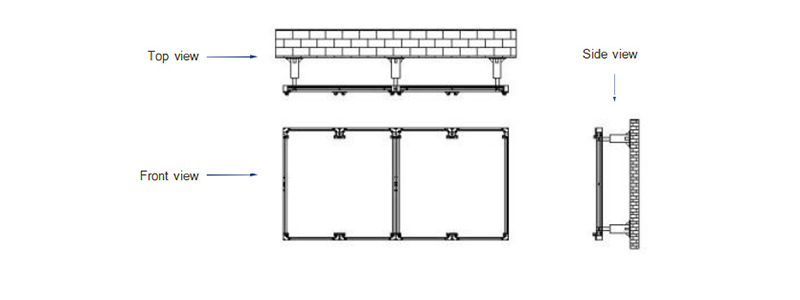

INSTALLATION DIAGRAM »

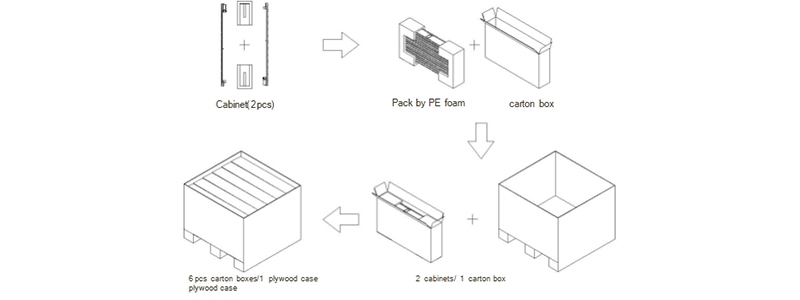

PACKING STATUS »
Product Features

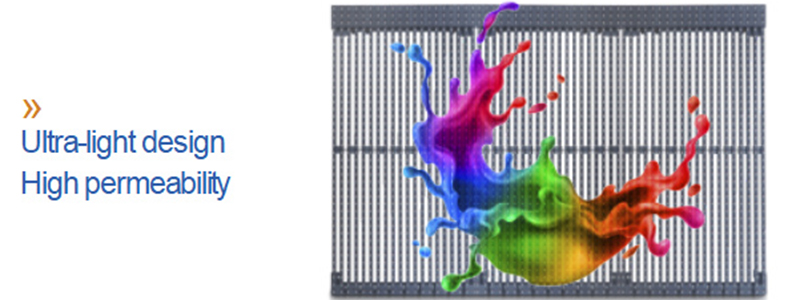

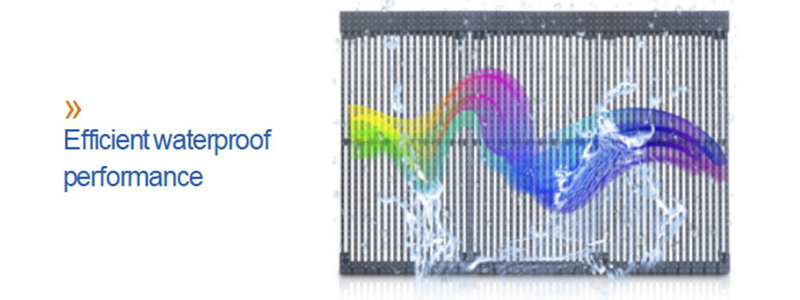

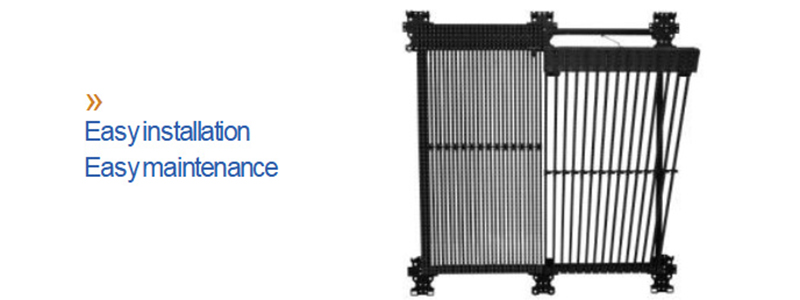

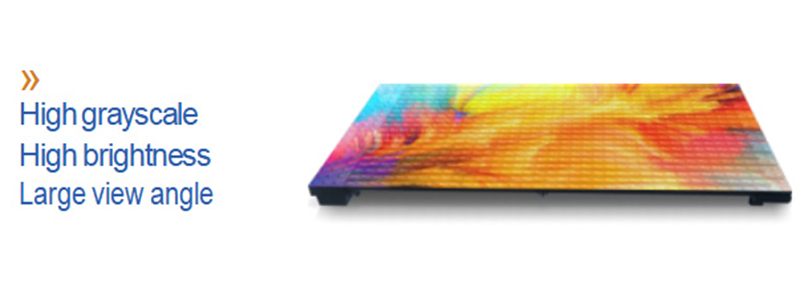

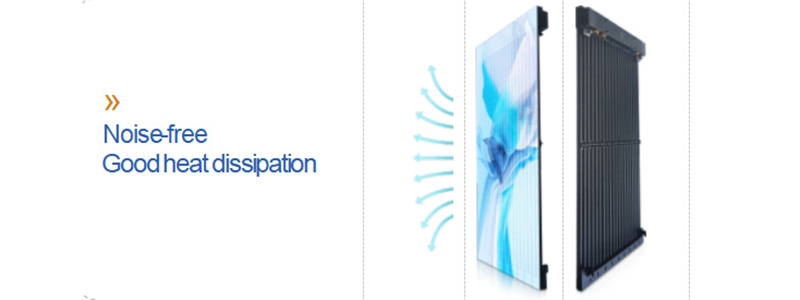

PRODUCT FEATURES »

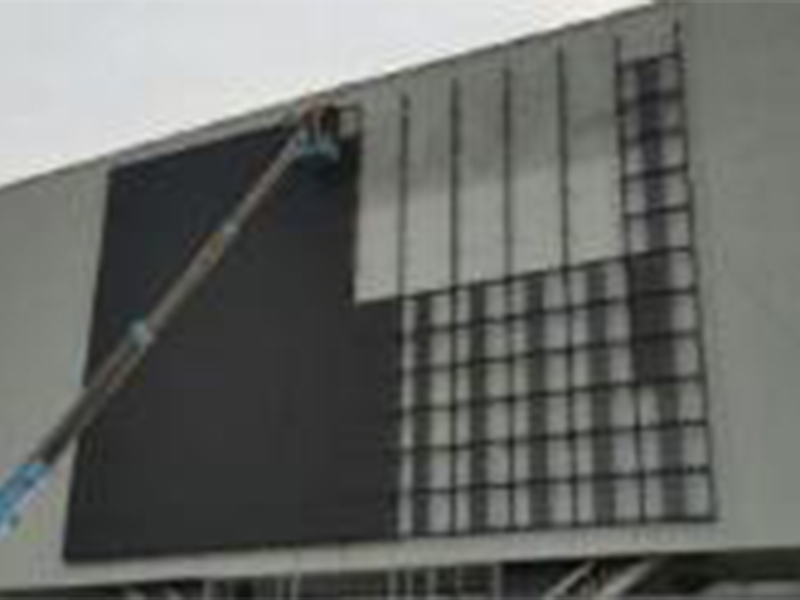

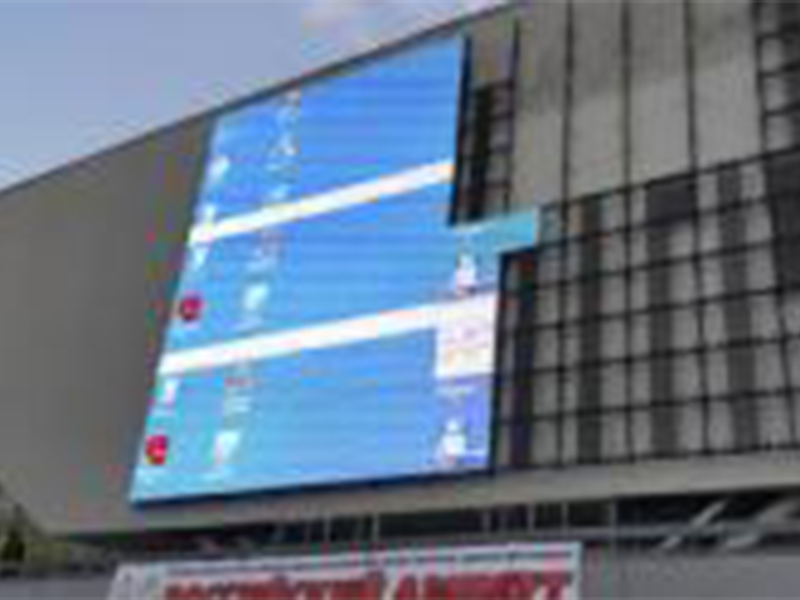

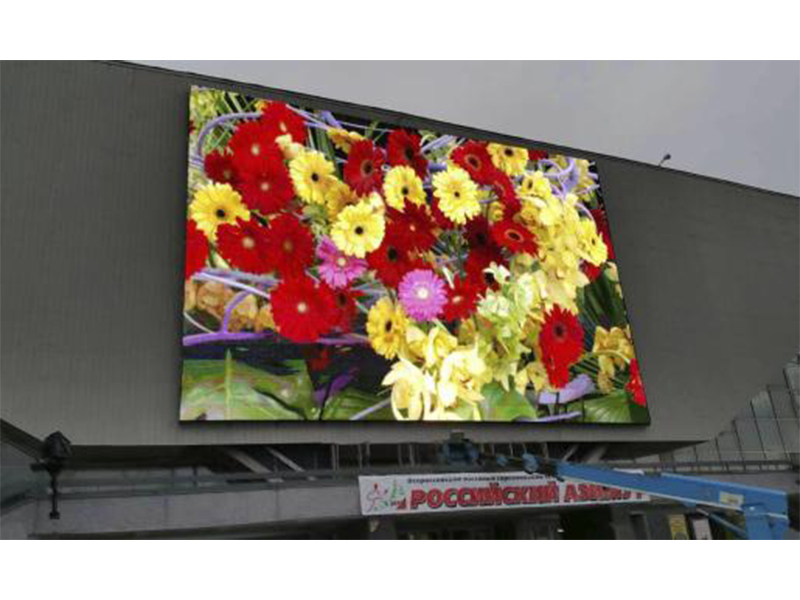

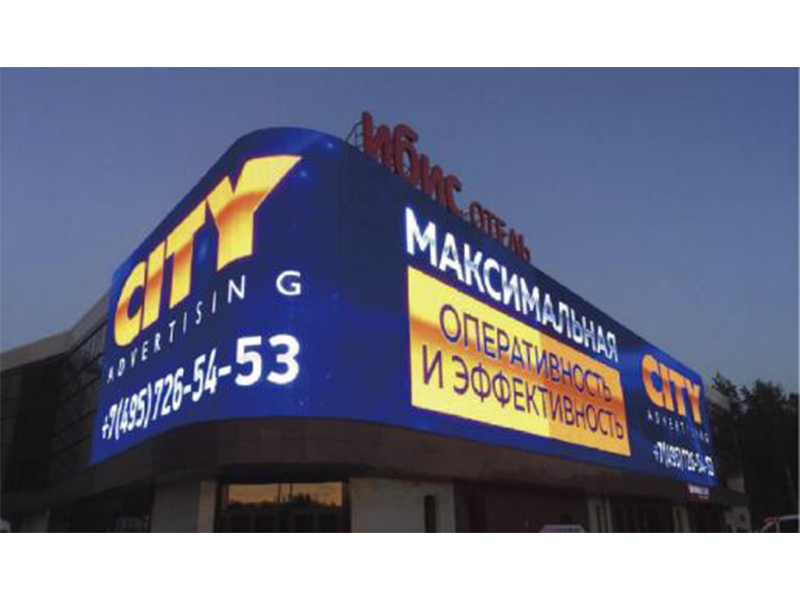

CASE SHOWS Ⅰ »

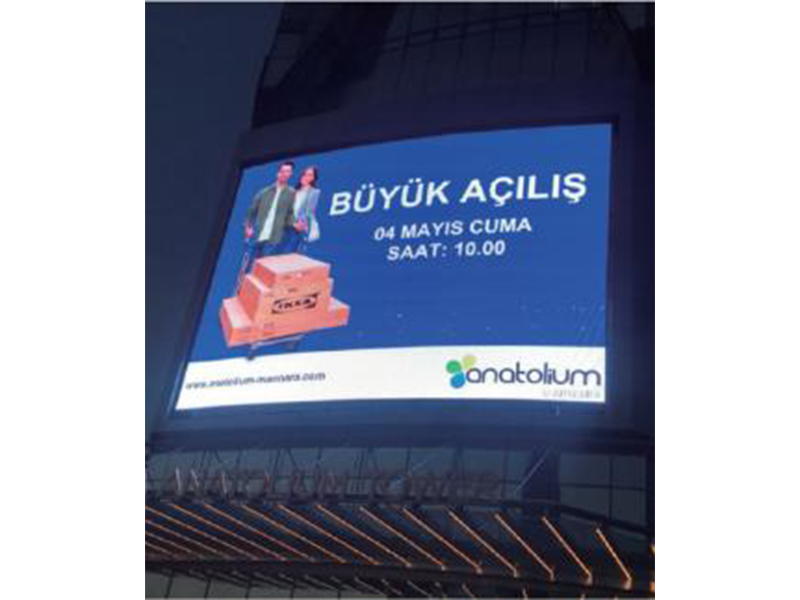

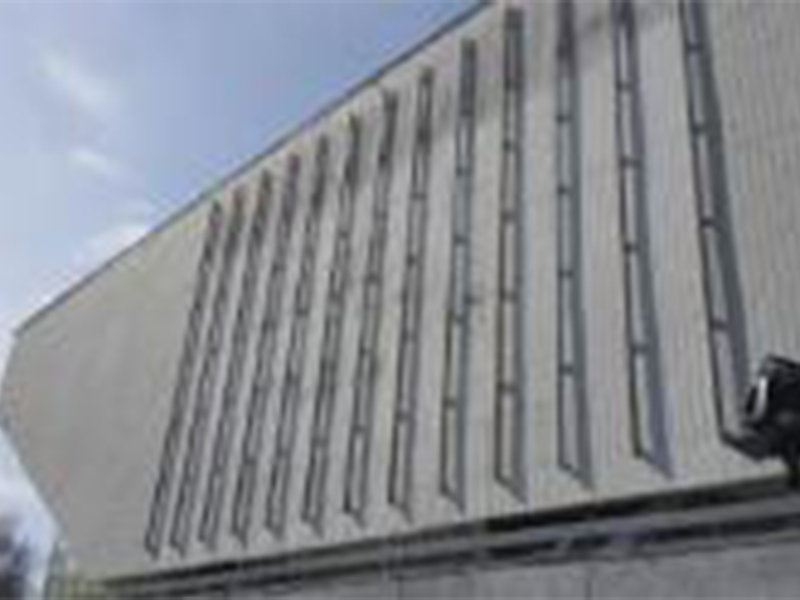

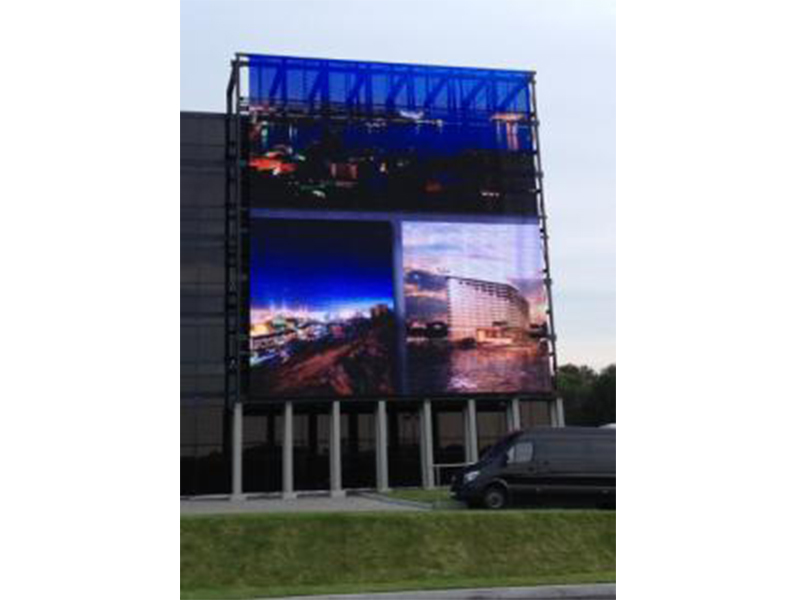

CASE SHOWS Ⅱ »
