What is your company's main product?
-
Our main product is Rental LED display,Outdoor LED display,Indoor LED display,transparent LED display, Floor tile led display etc.
-
-
What payment methods your company accept?
-
We accept most of the payment methods,but mainly accept T/T, Western Union/Alibaba assurance trade payment.
-
-
what's the shipment terms and delivery time of your company?
-
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
-
COB Led Display
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
INTRODUCTION »
The world's first third-generation COB display technology, the LED display panel has higher protection performance (shockproof, anti-collision, moisture-proof, and panel waterproof), higher reliability (out-of-box failure point rate is lower than the ultra-long trouble-free use Time), higher contrast, better image quality, more flexible and convenient splicing methods and higher environmental adaptability, fully applied to indoor real scenes.
FINE PIXEL PITCH »
Models P1.25 / P1.56 / P1.8
PARAMETERS »
|
Model |
P1.25 |
P1.56 |
P1.875 |
|
Pixel Pitch(mm) |
1.25 |
1.56 |
1.875 |
|
LED Configuration |
1R1G1B |
1R1G1B |
1R1G1B |
|
LED Type |
SMD1010 |
SMD1010 |
SMD1515 |
|
Pixel Density(dots/m²) |
640,000 |
409,600 |
284,444 |
|

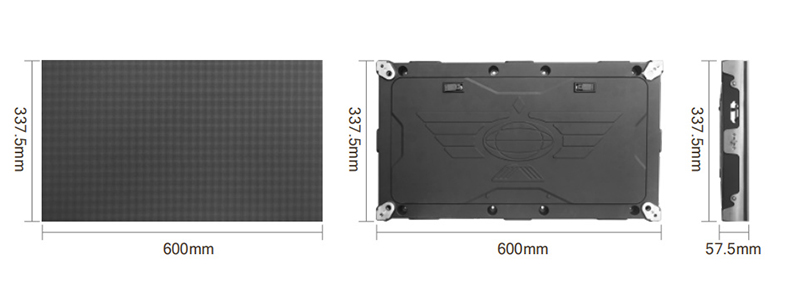

Cabinet Size(mm) |
600x337.5 |
600x337.5 |
600x337.5 |
|
Cabinet Resolution(dots) |
480x270 |
384x216 |
320x180 |
|
Module Size(mm) |
300x337.5 |
300x337.5 |
300x337.5 |
|
Module Resolution(dots) |
240x270 |
192x216 |
160x180 |
|
Cabinet Material |
Die-casting aluminum |
||
|
Cabinet Weight(kg) |
7.5 |
7.5 |
7.5 |
|
Brightness(cd//m²) |
≥550 |
≥550 |
≥550 |
|
Power Max./Avg.(W/m²) |
500/150 |
500/150 |
500/150 |
|
Refresh Rate(Hz) |
1920~3840 |
||
|
GrayScale(bit) |
12 ~ 16 |
||
|
Input Voltage |
AC100~240V/50~60Hz |
||
|
Working Temperature |
-20 ℃~60 ℃ |
||
|
Installation/Maintenance |
Front/Rear |
||
|
LifeSpan |
100,000 hours |
||
|
Mtbf |
>100,000 hours |
||
|
Certification |
CE ETL FCC RoHS |
||
FINE PIXEL PITCH »
Models P1.25 / P1.53 / P1.8 / P2
PARAMETERS »
|
Model |
P1.25 |
P1.53 |
P1.86 |
P2 |
|
Pixel Pitch(mm) |
1.25 |
1.53 |
1.86 |
2 |
|
LED Configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
LED Type |
SMD1010 |
SMD1010 |
SMD1515 |
SMD1515 |
|
Pixel Density(dots/m²) |
640,000 |
422,500 |
288,906 |
250,000 |
|

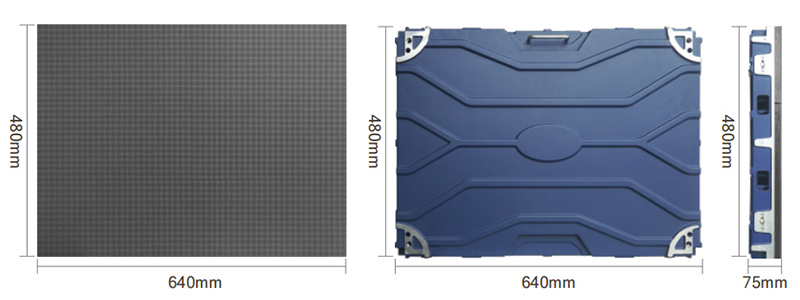

Cabinet Size(mm) |
640x480 |
640x480 |
640x480 |
640x480 |
|
Cabinet Resolution(dots) |
512x384 |
416x312 |
344x258 |
320x240 |
|
Module Size(mm) |
320x160 |
320x160 |
320x160 |
320x160 |
|
Module Resolution(dots) |
256x128 |
208x104 |
172x86 |
160x80 |
|
Cabinet Material |
Die-casting aluminum |
|||
|
Cabinet Weight(kg) |
11.5 |
11.5 |
11.5 |
11.5 |
|
Brightness(cd//m²) |
≥550 |
≥550 |
≥550 |
≥800 |
|
Power Max./Avg.(W/m²) |
650/150 |
650/150 |
650/150 |
650/150 |
|
Refresh Rate(Hz) |
1920~3840 |
|||
|
GrayScale(bit) |
12 ~ 16 |
|||
|
Input Voltage |
AC100~240V/50~60Hz |
|||
|
Working Temperature |
-20 ℃~60 ℃ |
|||
|
Installation/Maintenance |
Front/Rear |
|||
|
LifeSpan |
100,000 hours |
|||
|
Mtbf |
>100,000 hours |
|||
|
Certification |
CE ETL FCC RoHS |
|||
Product Features

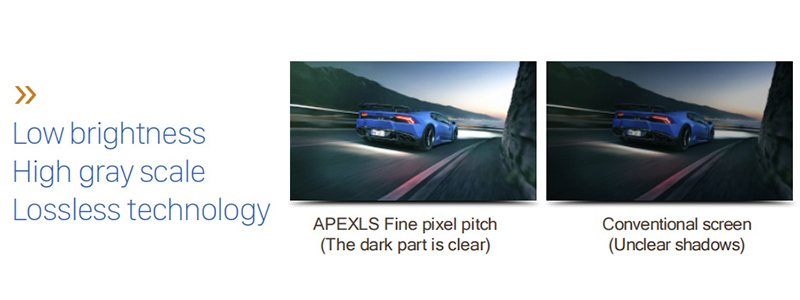

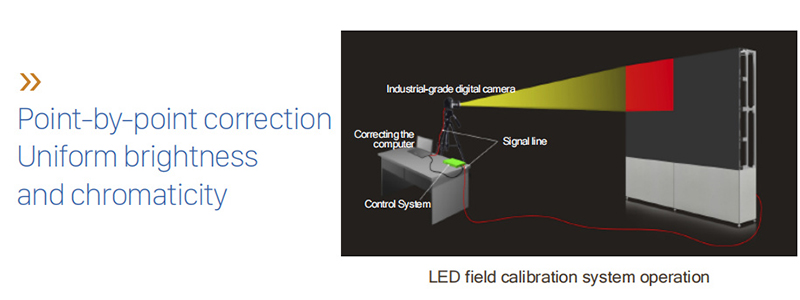

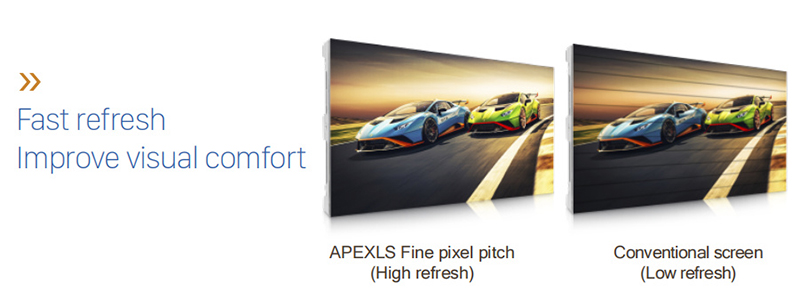

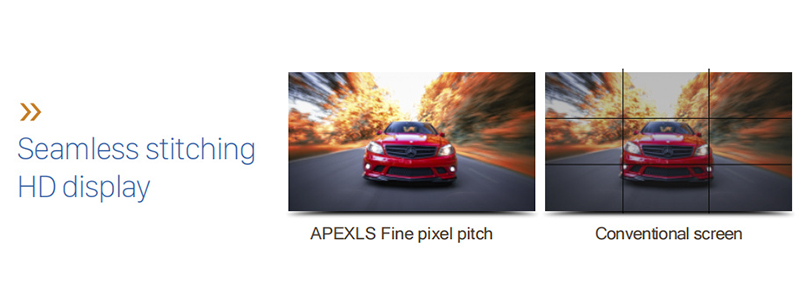

PRODUCT FEATURES »

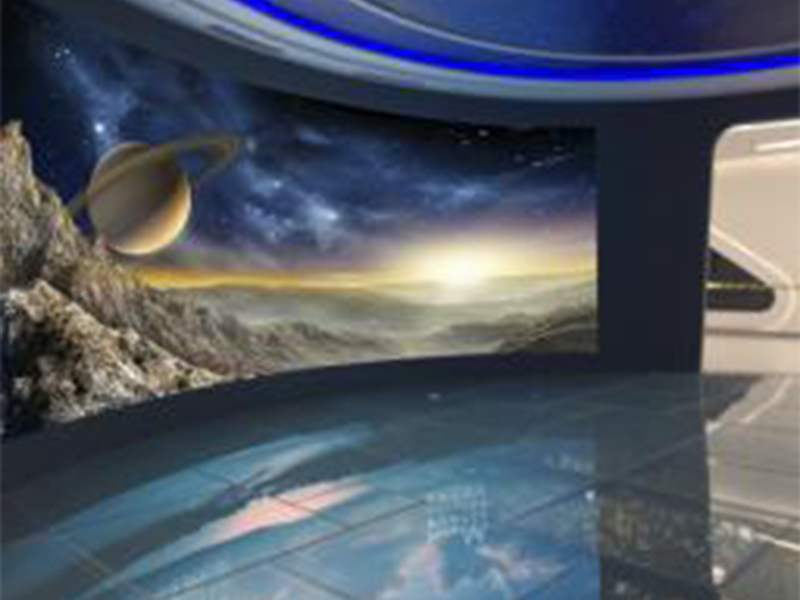

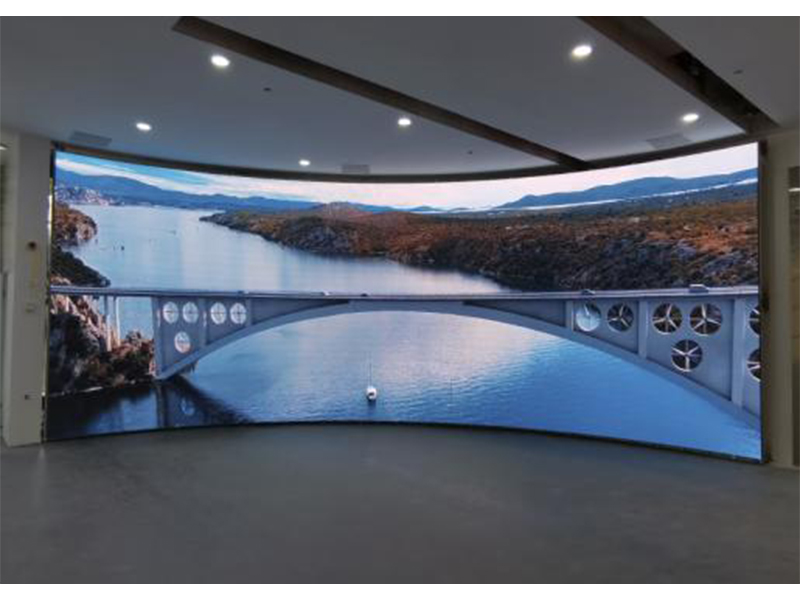

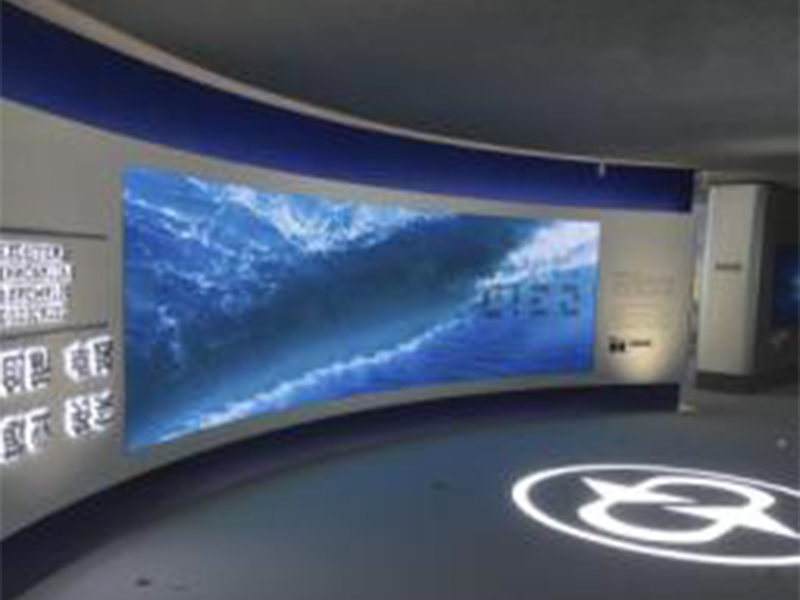

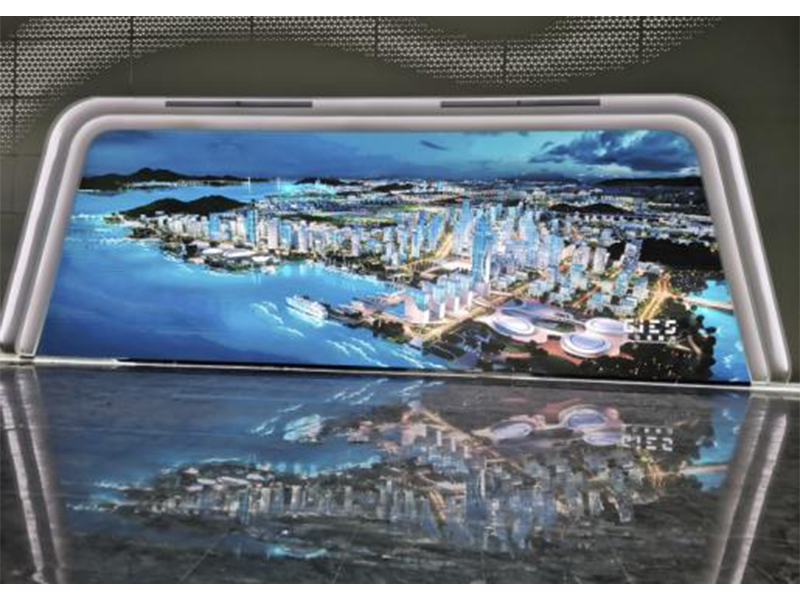

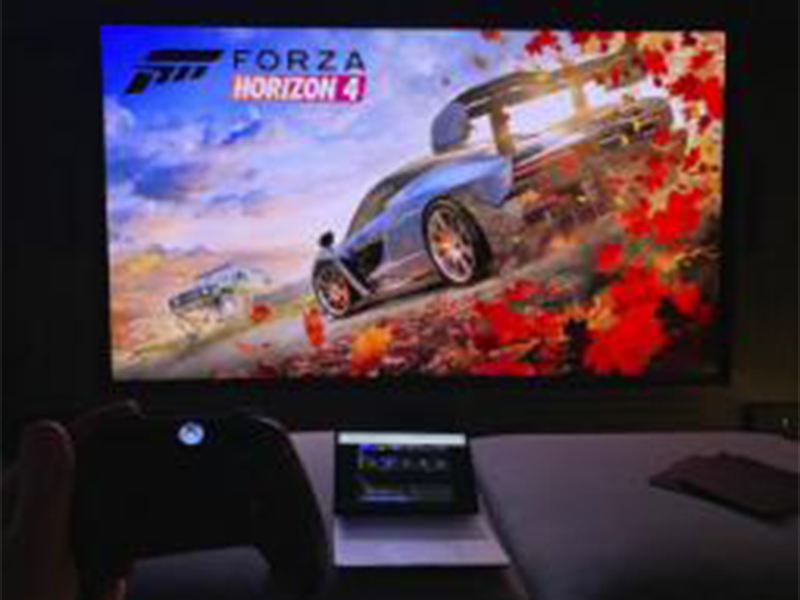

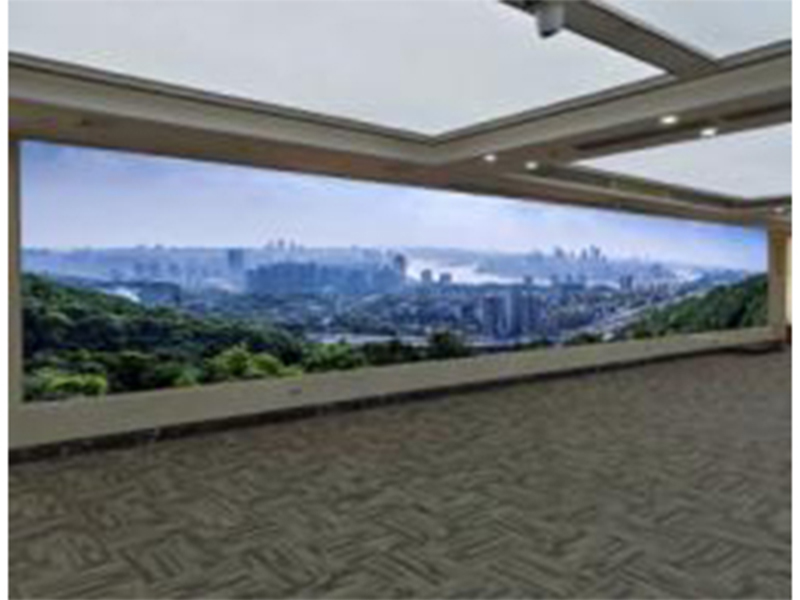

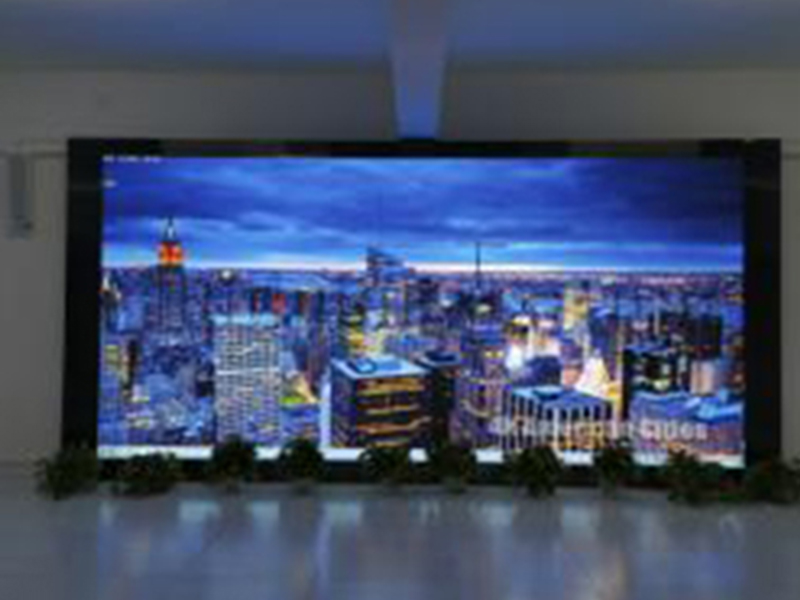

CASE SHOWS Ⅰ »

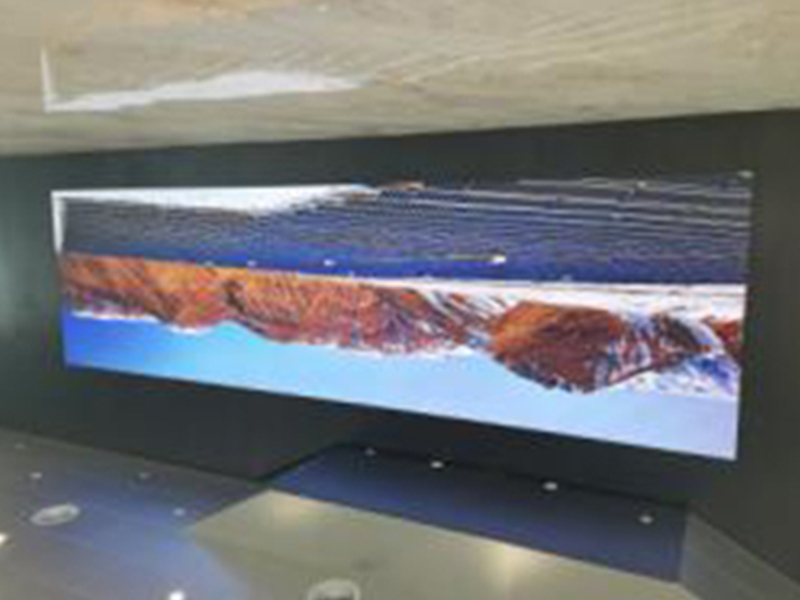

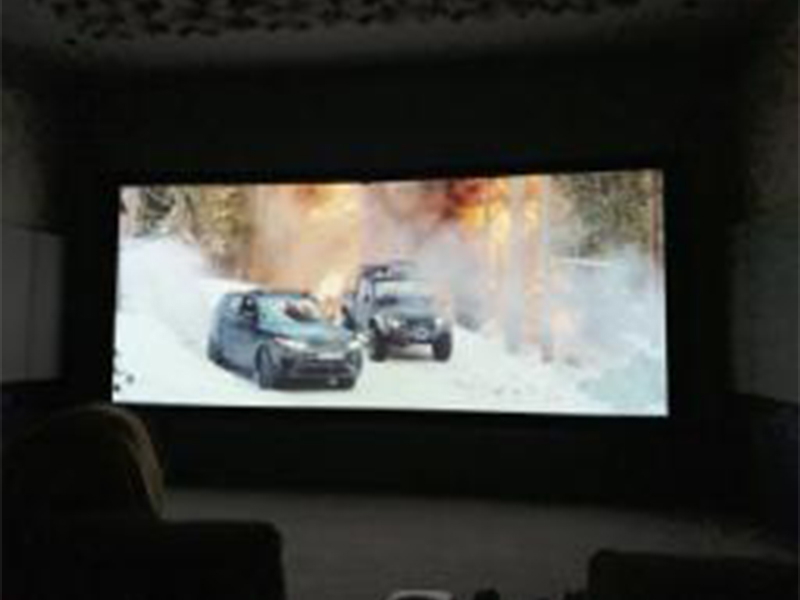

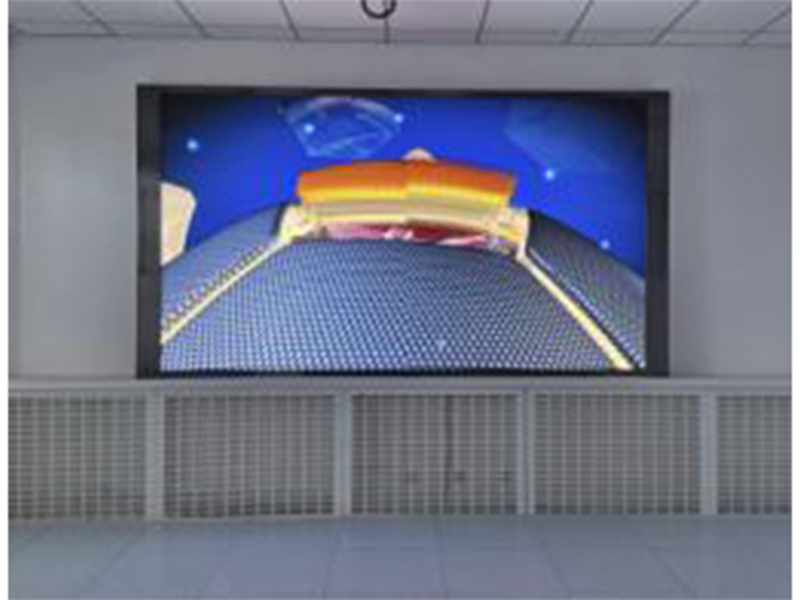

CASE SHOWS Ⅱ »
